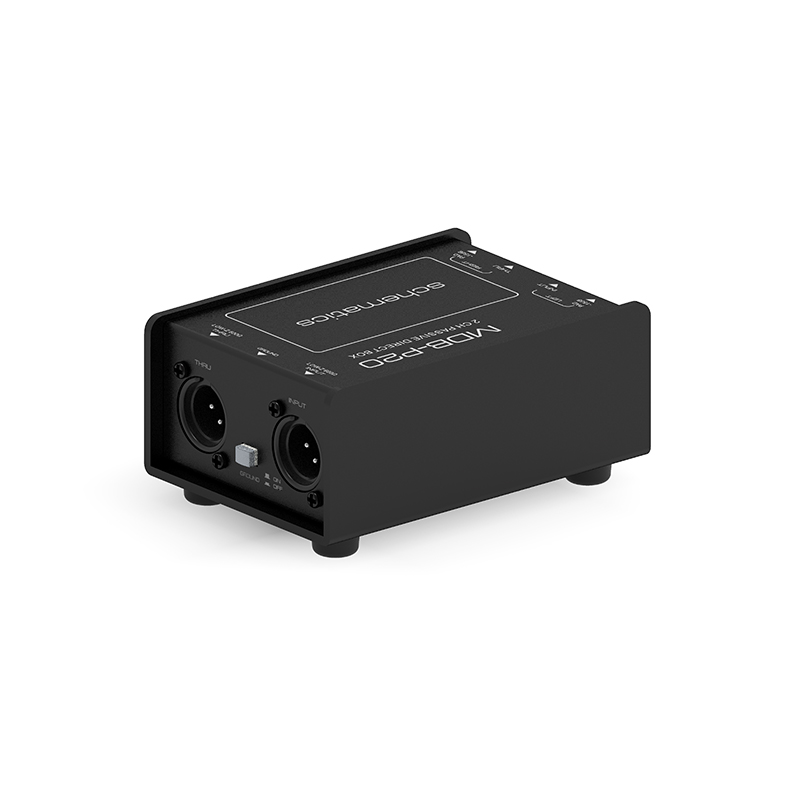

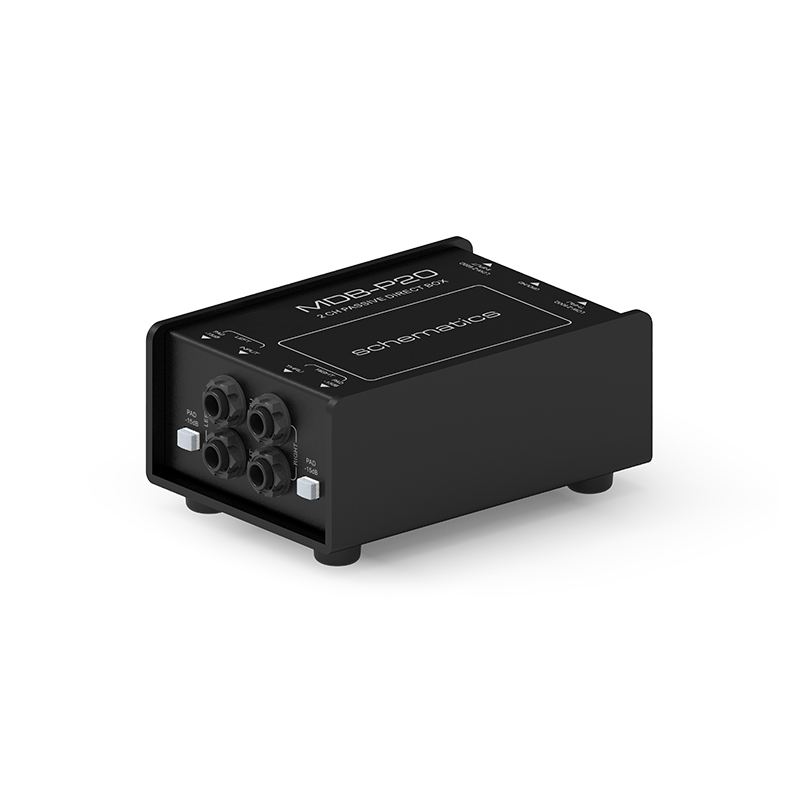

MDB-P20

2 Channel Passive Direct Box
*High quality Direct box with Ink-Splashed Alloy Transformer
*Input pad, Mono Sum, 180° polarity reverse, Ground lift, HPF
* Input Connectors:1/4"TRS JACK
*Output Connectors:Balanced XLR, 1/4" Thru
*Construction:14 gauge steel chassis and outer shell
*Power:48V phantom - proprietary digital switching

Number of Channel:   2channel Passive
Frequency Response:  20Hz-20kHz
Dynamic range:
Total harmonic distortion:
Intermodulation Distortion:
Phase Difference:
Input Impedance:     220kΩ - ¼" input
Output Impedance:   600Ω - XLR output
Equivalent Input Noise:
Maximum Input:
Size (L x W x D):      116x85x50mm
Weight:   0.8kg
